型 號：GBT-1204000-GaN / TP06-120400W
輸入電壓：100-240V
輸出電壓：12V
輸出功率：48W
輸出電流：4A
應用行業：自助售賣機電源,LED燈條電源,販賣機電源

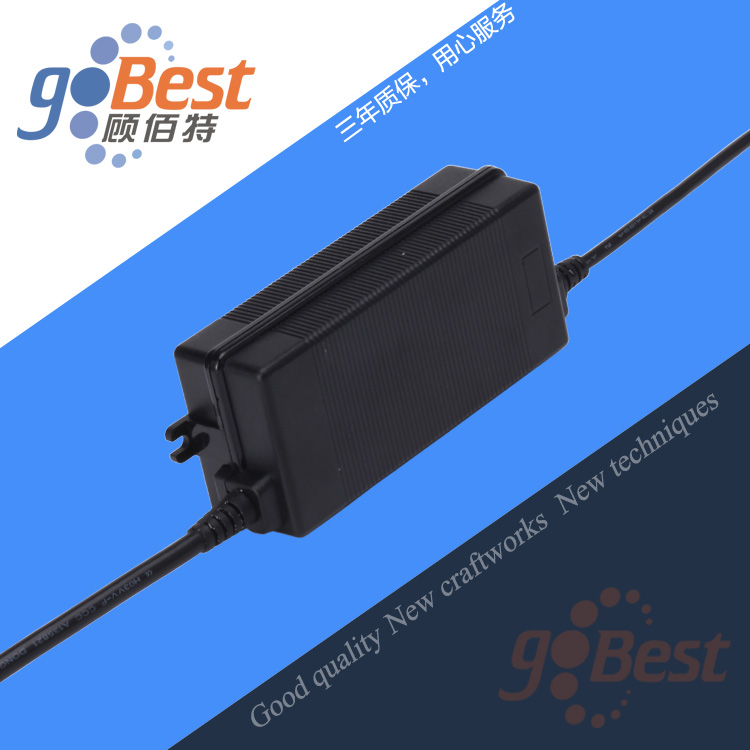

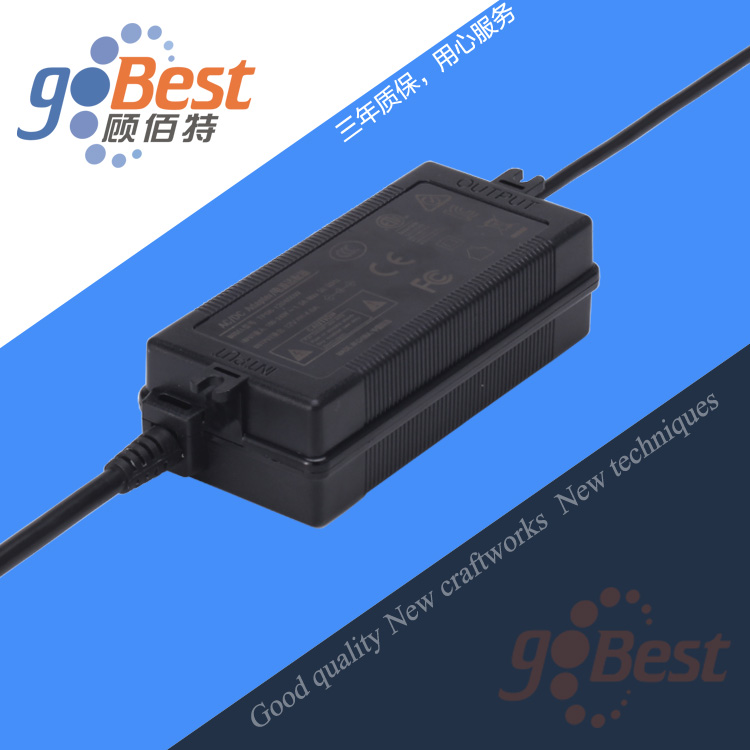

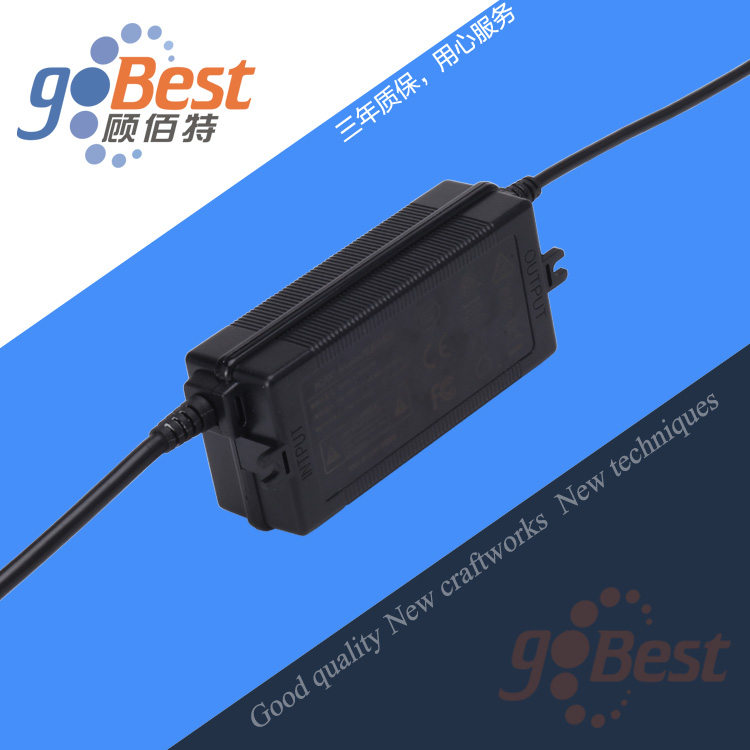

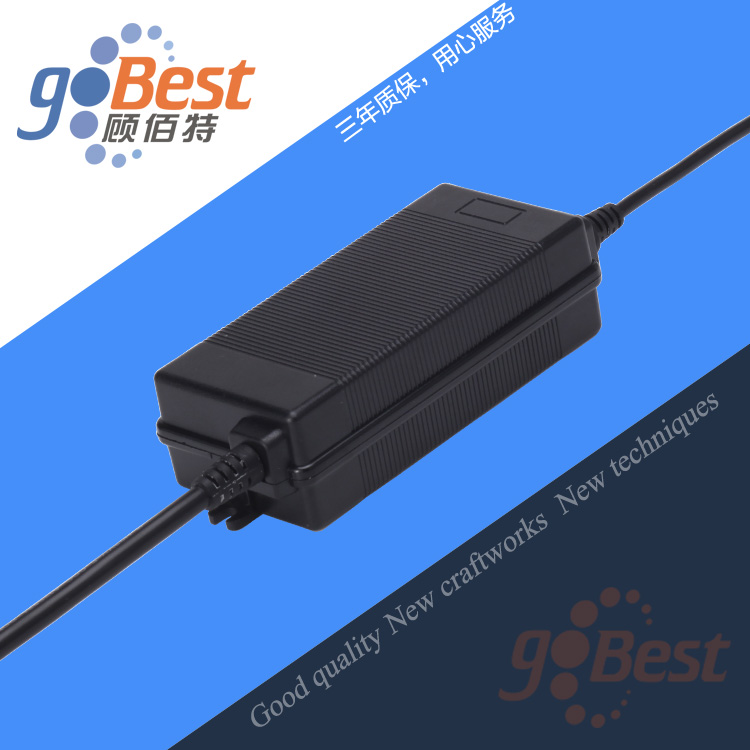

12V4A電源適配器兩頭出線帶螺母插頭電源
1. General Description / 概述
It is Built in power supply and used for IT product.
本產品為適配器電源，適用于資訊類產品。
2. Features / 特性
High Efficiency, Low Standby Power,GDP / 高效率,低待機功耗, 國際能耗標準 Wideworld Voltage Input / 全球電壓輸入
Input overvoltage Protection / 輸入過壓保護
Input current overload protected ( fuse protect )./ 輸入過流保護（保險絲保護） Short protection / 短路保護功能
Output Over Load protection / 輸出過載保護功能
overtemperature Protection / 過溫保護
3. Suitable Load / 適用負載
12V/4.0A IT Products;Used fo Built in power supply.
12V/4.0A 的資訊類產品;應用于電源適配器.
4. Environmental Condition / 適用環境條件
Operating Temperature / 工作溫度 : -100C 500C Storage Temperature / 貯存溫度 : -200C 800C
Operating Humidity / 工作濕度 : 0% 90%RH
Storage Humidity / 貯存濕度 : 0% 95%RH
Operation Altitude/工作海拔 : to 10,000FT.
Storage Altitude/貯存海拔 : to 20,000FT.
Cooling Method/冷卻方式 : Ventilation cooling/自然冷卻
5. In ut Electrical Characteristics / 輸入電氣參數
Station 位號 | No. 序號 | Item 項目 | Symbol 符號 | Min 最小值 | Type 規格值 | Max 最大值 | Unit 單位 |
AC/L AC/N | 1 | Input AC voltage / 輸入交流電壓 | Vin | 110 | ---- | 240 | VAC |
2 | Input AC current / 輸入交流電流 | Iin | ---- < 1.2 ---- | A | |||
3 | Input current / 輸入頻率 | Hin | ---- 50-60 ---- | HZ | |||
4 | Input power / 輸入功率 | W | ---- | 53.50 | ---- | W | |
5 | Power Factor / 功率因數 | cosφ | ---- | 0.89 | ---- | cosφ | |
6 | Operating Efficiency / 工作效 率 |
η |
----- | 89 |
----- | % | |
6. Output Electrical Characteristics / 輸出電氣參數
Power Supply Output Electrical Characteristics / 電源輸出電氣參數
Station 位號 | Item 項目 |
symbol 符號 | Test Conditions 測試條件 | Min 最小值 | Type 規格值 | Max 最大值 | Unit 單位 |
+V GND | no-load voltage 輸出空載電壓 | Vout | Iout=0A | 12.00 | 12.20 | 12.30 | VDC |
full load voltage 輸出負載電壓 | Vout | Iout=4.0A | 11.85 | 12.00 | 12.20 | VDC | |
Output Power 輸出功率 | Pout | Vout=12.0VDC |
--- | 48 |
---- | W | |
STB Power 待機功率 | Pout | Vout= 12VDC/ 220Vac input |
---- |
---- | ≦0.10W | W | |
Ripple & Noise 紋波和噪聲 | Vp-p | Full load |
--- |
--- | ≤200 | mV |
7.Accreditation Characteristics / 信賴性參數
Station 位號 | Item 項目 | Conditions 測試條件 | Type 規格值 | Mark 備注 |
1 | 可靠性(RELIABILITY) | MTBF | >30 kHours at 25 ℃ | |
2 | 保持時間(Hold-Up Time) | 220V | ≥10 mS | |
3 | 絕緣阻抗(MΩ) | 室溫 | DC500V 50M Ωmin | |
4 | 絕緣耐壓(KV) | / | 3000Vac 50Hz 1minute ≤5mA | |
5 |
振動試驗(VIBRATION) | Normal | 10-55Hz, 49.0m/s2(5G), 3minutes period, 60minutes each along X, Y and Z axis | |
6 | 沖擊試驗(IMPACT) | Normal | 196. 1m/s2(20G),11ms,once each X,Y,Z axis | |
7 | 電磁干擾(EMI) | / | CISPRPub 12 | |
8 | 電磁抗擾(EMS) | / | CISPRPub 12 | |
9 | 抗靜電(ESD) | / | 8KV, CRITERIA B | |
10 | 安全標準(SAFETY) | / | CE |
8 輸出補充說明(Output Added Characteristics)
8.1 輸出動態響應（Output Transient Response）
Voltage Tolerance Limit | Slew Rate | Load Change |
12.00V-12.30V | 0.2A/uS | Min. to 50% load and 50% to Max. load |
Vo±5% | 0.2A/uS | Min. load to Max. load |
Notes/ : Transient response measurements shall be made with a load changing repetition rate of 50Hz to 10kHz.
在負載變化率為 50Hz to 10kHz 范轉內測量動態響應.
8.2 輸出保持時間（DC Output Hold-Up Time）
Output Voltage | 110Vac | 220Vac |
+12.00V | ≥10 mS | ≥10 mS |
Notes/ : All of dc output at full load.
滿負載狀態下測試
8.3 輸出超調（DC Output Overshoot At Turn On & Turn Off）
Output(V) | Over shoot voltage(V) | |
Turn on | Turn off | |
+12.00V | 10% | 10% |
Notes/ : All of dc output current from Min. to Max..
電流從最小到最大狀態下測試.
8.4 輸出上升時間（DC output voltage rise time）
Output Voltage | 110Vac&Full Load | 240Vac&Full Load |
+12.00V | ≤100 mS | ≤100mS |
9.Efficiency / 效率
93% minimum at 220V AC input voltage and full load.
在220VAC 輸入電壓、滿載條件下，電源的效率不小于93%。
10.Protection / 保護功能
10.1 Input overcurrent Protection / 輸入過流保護
The power supply has a 3. 15A 250V Current fuse to protect itself.
電源使用一個3.15 安250 伏的保險絲自動保護。
10.2 Output Short Circuit Protection / 輸出短路保護
The unit shall be shutdown when the output short circuit. Removal of output short conditions, the unit shall automatic recovery of the output voltage.
本產品具有輸出短路保護功能，當輸出端短路時，整機停止工作，當短路條件消除后，重新 啟動本機， 自動恢復到正常輸出。
10.3 Over Load Protection / 輸出過載保護
The unit shall be shutdown when the output Over Load(Over4~ 11A) . Removal of output Over Load conditions, the unit shall automatic recovery of the output voltage.
本產品具有輸出過載保護功能(超過 4~ 11 安培) ，當輸出端過載時，整機停止工作，當過載 條件消除后，重新啟動本機， 自動恢復到正常輸出。
11. Temperature Rise Test / 溫升測試
The power supply’ surface temperature is tested after it is fully loaded for 2 hours at 30℃ .
在環境溫度30℃下，滿載工作2 小時后，電源表面的溫度測試.
Annotate: Temperature rise means experiment temperature minus ambient temperature 20℃. 注：所測溫度值減去環境溫度20℃為電源的溫升
12. Normal Condition Testing / 常規工作測試
Damage to the device must not occur such as fire, smoke, break, and molten metal in equipment.
正常工作條件下，不可出現起火、高溫、擊穿、出現熔出金屬等現象.
13.Reliability and quality control /
BURN-IN/ 烘烤 The power supply shall under go aminimun of 2 hours Burn-In test under full load at 40℃±5℃ and 220Vac input voltage
電源應在 40℃±5℃ and 220Vac 輸入和滿載條件下烘烤 2 小時。
14. Pin Connection (連接器腳位定義)

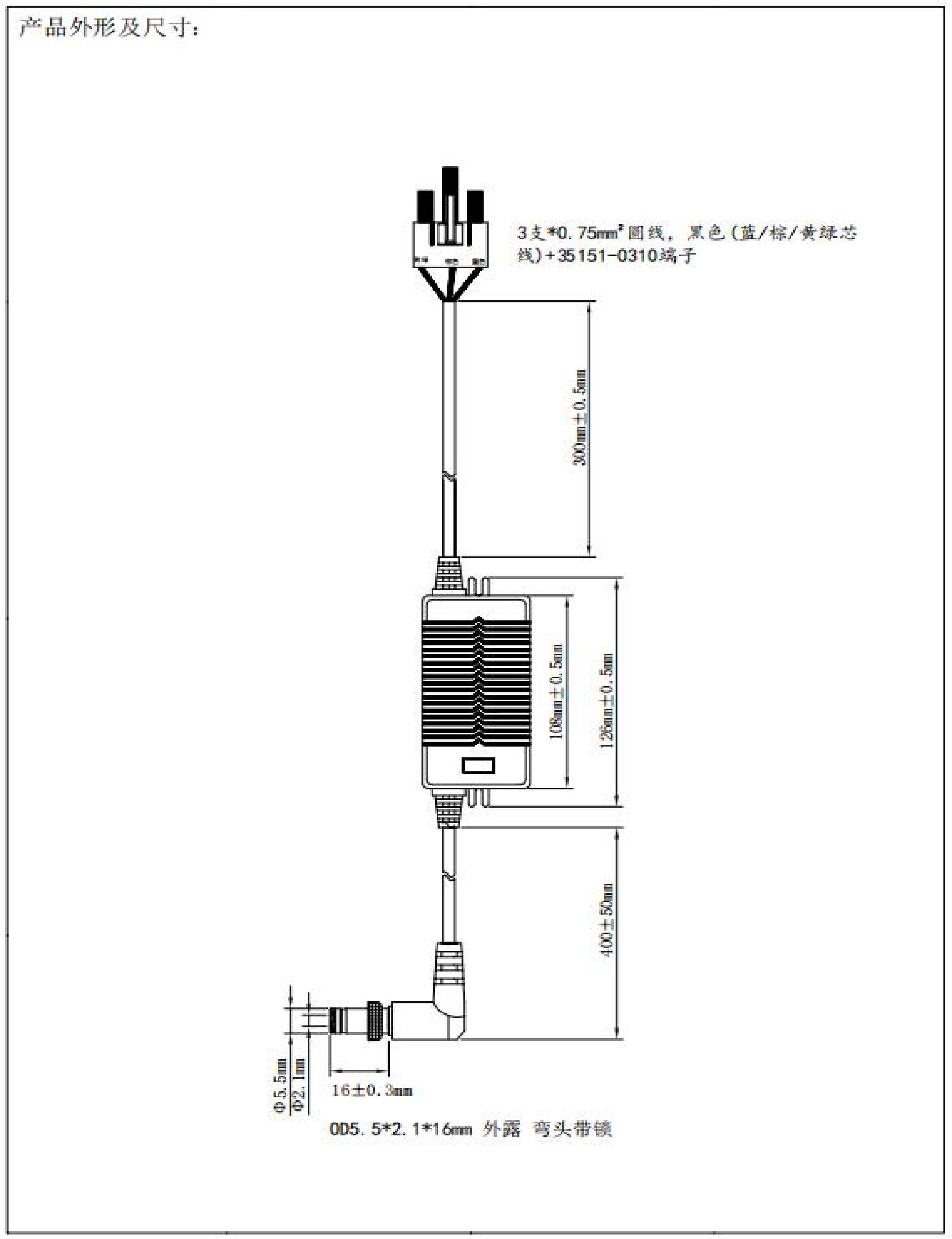

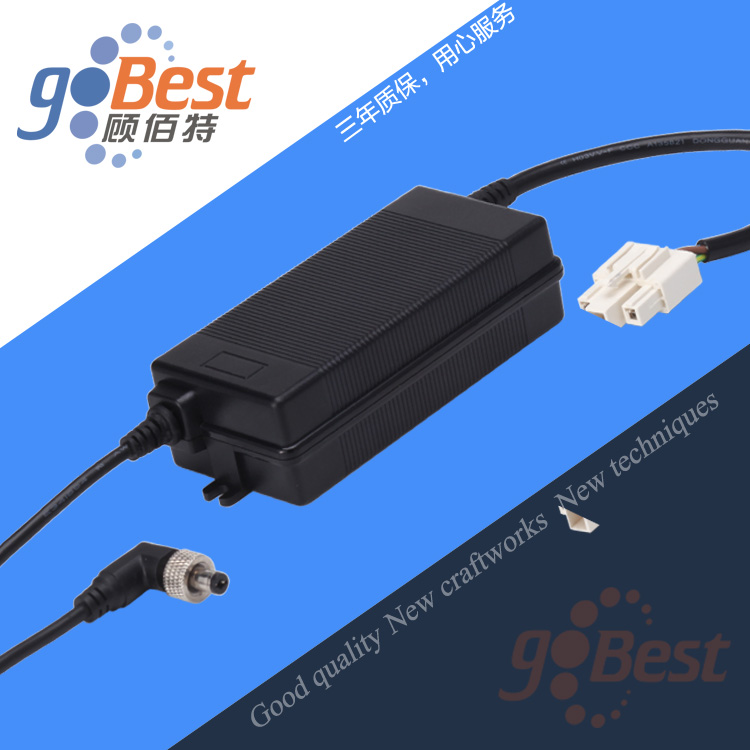

Output connector /輸出插座: +V \ GND 線長：28 支*0.15mm 音鉤槽 OD5.5*2.1*16mm 外露 彎 頭帶鎖
Pin No./引腳 | Symbol/符號 | Description/描述 | Parameter/參數 |
12.00V | +V | Output 12.00VDC/輸出 12.00VDC | 12.00V----12.30V |
GND | GND | Ground/接地 | 0V |
Input connector /輸入插座: L/N 焊 3 支*0.75mm2圓線，黑色(藍/棕/黃綠芯線)+35151-0310 端子
Pin No./引腳 | Symbol/符號 | Description/描述 | Parameter/參數 |
1 | AC/L | Supply voltage/供電 | 110-240VAC |
2 | AC/N | Supply voltage/供電 | 110-240VAC |
15.Design Reference Standards / 設計參照標準
15.1EMI Standards / EMI 參照標準
Conductive & Radiation limits: CISPR 22 Class B
傳導,幅射的設計標準依據：CISPR 22 Class B
15.2 EMS Standards / EMS
e) Electrostatic Discharge Immunity Test: IEC-61000-4-2 ，Criteria B 防靜電測試標準：IEC-61000-4-2 ，Criteria B
f) EFT/Burst Immunity Test: IEC-61000-4-4 ，Lever 3. 快速脈沖群測試標準：IEC-61000-4-4, Lever 3.
g) Surge Immunity Test: IEC-61000-4-5 , Lever 3. 防雷擊測試標準：IEC-61000-4-5, Lever 3.
h) Voltage Dips, Short Interruptions and Voltage Variations Immunity Test. IEC-61000-4-11 ，Criteria B
電壓跌落、短時中斷和電壓變化測試標準：IEC-61000-4-11，Criteria B
15.3 Safety Compliance / 安規參照標準
符合 GB4943.1-2022 標準
